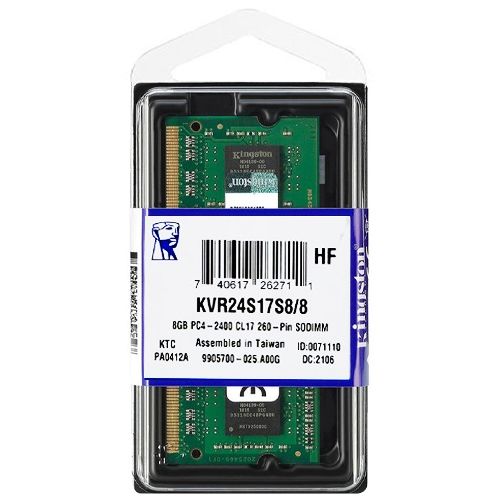

Kingston 8GB PC4 2400MHz DDR4 Laptop Ram
| Brand | Kingston |
| Type | DDR4 |
| Speed | 2400MHz |
| Memory Size | 8GB |
| Form factor | CL17 260-Pin SODIMM |
3 Years Warranty
KVR24S17S8/8 | 8GB 1Rx8 1G x 64-Bit PC4-2400
Categories:
DESCRIPTION
This document describes ValueRAM's 1G x 64-bit (8GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. This 260-pin DIMM uses gold contact fingers.
FEATURES
• Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
SPECIFICATIONS
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 44.75ns(min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
| Row Active Time (tRASmin) | 32ns(min.) |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0 o C to +85o C |
| Storage Temperature | -55 o C to +100 o C |
