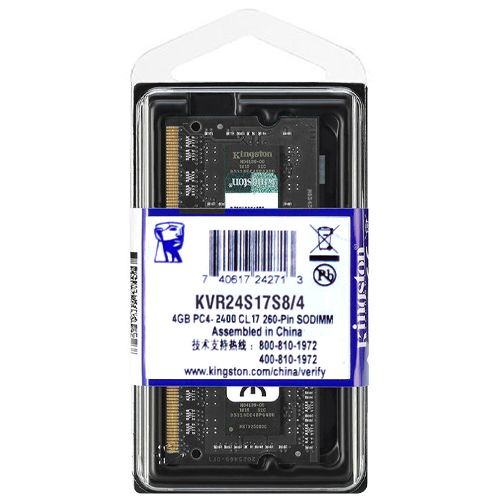

Kingston 4GB DDR4 2400MHz PC4 Laptop Ram
| Brand | Kingston |
| Type | DDR4 |
| Speed | 2400MHz |
| Memory Size | 4GB |
| Form factor | CL17 260-Pin SODIMM |
3 Years Warranty
Categories:
KVR24S17S6/4 4GB 1Rx16 512M x 64-Bit PC4-2400 CL17 260-Pin SODIMM
DESCRIPTION
This document describes ValueRAM's KVR24S17S6/4 as a 512M x 64-bit (4GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
FEATURES
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
