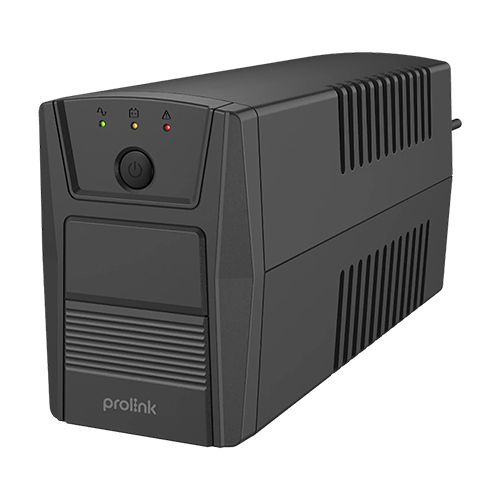

PROLINK 650VA UPS PRO701SFC
| Model | : PRO701SFC |
| Batteries | : 1X12V batteries required. (included) |
| Voltage | : 230 Volts |
| Capacity | : 650VA |
| Usage | : Power Backup |
| Battery Type | : 12V/8.2AH |
| Outlet Plugs | : 2 (3 Pin-Socket) |
2 Years Warranty
Categories:
Capacity
650VA
Input voltage range
162 - 290VAC (Single boost)
140 - 300VAC (Double boost)
Input frequency
50Hz/60Hz (Auto-sensing)
Input phase
Single phase with ground
Output voltage range
220 - 240VAC
Output battery mode
220 - 240VAC
Output frequency
50Hz ±1% (Battery mode)
Output waveform
Simulated sine wave (Battery mode)
Sine wave (AC mode)
Batter type and number
12V/8.2AH x 1pcs
Battery backup time
8-20 mins depending on load
Battery recharge time
2-4 hours recover to 90% capacity
Interface
RS232, USB port, RJ45/RJ11 (Optional)
Display
LED/LCD Optional
Alarm
Batt. mode, low battery, overload, fault, etc
Short circuit protection
Yes (Line mode & battery mode)
Surge protection
Yes
Protection/ monitoring alarm
Audible & visual
Overload protection
Line mode:
100 - 120% 1 min change to fault mode
>120% change to fault mode immediately
Battery mode:
100 - 120% 1 min change to fault mode
>120% change to fault mode immediately
Dimensions:Product
286mm (D) x 96mm (W) x 138mm (H)
Weight:Product
4.3 kg
