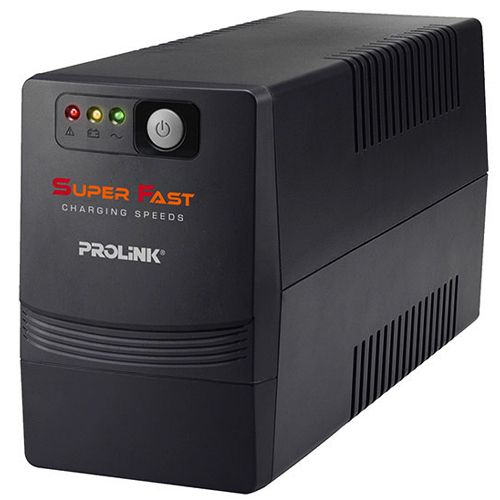

Prolink 1.2Kva PRO1201SFC 1200VA UPS

Features

• Built-in super fast charger, battery can be recharged to 90% of its capacity within 2-4 hours
• Excellent microprocessor control guarantees high reliability
• Boost and buck AVR for voltage stabilization
• Auto restart while AC is recovering
• Simulated sine wave
• Off-mode charging
• Cold start function
• RJ45 ports (Fax/Modem Protection)
• Optional USB communication port
• Optional HID Compliant USB (for PRO1201SFCU

Specifications

Capacity
1200 VA

Input
Voltage Range - 140~300VAC ±5%
Frequency - 50Hz/60Hz (Auto-sensing)
Phase - Single + GND

Output
Voltage Range - 230VAC +12% -14%
Battery Mode - 230VAC +10% -10%
Frequency - 50Hz ±1% (Battery mode)
Waveform - Simulated sine wave (Battery mode) / Sine wave (AC mode) / 2ms typica

Battery
Type - 12V/8.2AH - 2pc
Backup Time - 8 - 30 mins depending on load
Recharge Time - 2-4 hours recover to 90% capacity

Protection/ Monitoring
Short Circuit Protection - Yes (Line mode & battery mode)
Surge Protection - Yes
Alarm - Audible & visual
UPS Protection - Load Auto Sensing and Abnormal Protection
Overload Protection - Line mode : 110 - 120% 5 mins change to fault mode >120% shutdown immediately
Battery mode : 100 - 110% alarm & shutdown in 10 secs >120% shutdown immediate
Intelligent Battery - Prevent overcharging of battery
Management - Protect battery and prolong battery life

Interface
RJ45 Ports - Modem/Fax Protection
USB Connector - AC fault, battery low, shutdown UPS

General
Noise Level - <40dB
Temperature - 0˚C - 40˚C
Humidity - 0 - 90%
Power Factor - Up to 0.7
Built-in AVR - TRUE Full AVR (3 steps)

Physical
Dimension (D x W x H) - 320 x 130 x 182mm
Weight - 8.2kg
