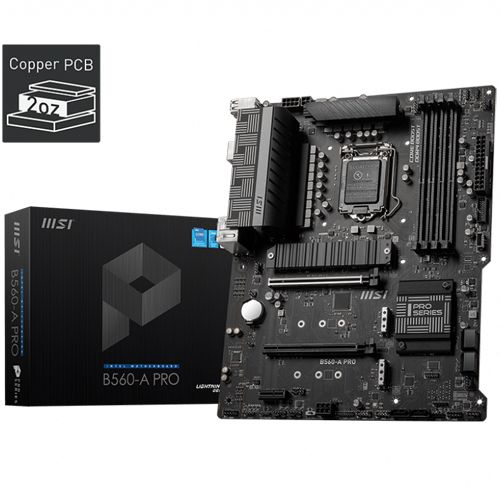

MSI B560 A PRO MOTHERBOARD
Chipset INTEL - B560
Manufacturer - MSI
SOCKET TYPE - LGA 1200 11TH GEN
3 Years Warranty
Categories:
PROCESSOR
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1200
CHIPSET
Intel® B560 Chipset
MEMORY
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
2x PCIe x16 slots
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E2 (from B560 chipset)
Supports up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)
ONBOARD GRAPHICS
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology
STORAGE
6x SATA 6Gb/s ports (from B560 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready 2
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B560 Chipset
Intel® B560 Chipset
1x USB 3.2 Gen 2×2 20Gbps (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps ports (1 Type-C available through the internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
4x USB 2.0 Type-A ports on the back panel
4x USB 2.0 ports are available through the internal USB 2.0 connectors
AUDIO
Realtek®ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8125B 2.5Gbps LAN controller
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (Supports RTD3)
1x Tuning controller connector
LED FEATURE
1x EZ LED Control switch
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED
BACK PANEL PORTS
- USB 2.0
- DisplayPort
- LAN port
- USB 3.2 Gen 2×2 20Gbps Type-C
- Audio connector
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- Optical S/PDIF OUT
DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
