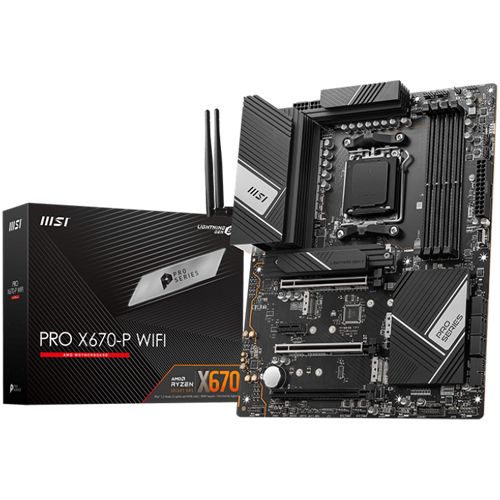

MSI PRO X670 P WIFI MOTHERBOARD

CHIPSET
AMD X670

CPU SUPPORT
Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5

MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS
1x HDMI™
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
3x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)

STORAGE
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
*SATA_A1 & SATA_A2 do not support RAID function.

USB4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

LANRealtek®
RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

LED FEATURE
4x EZ Debug LED

BACK PANEL PORTS
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 3.2 Gen 2 10Gbps (Type-C Display port)
USB 3.2 Gen 2×2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
S/PDIF-OUT

OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION
ATX
243.84mmx304.8mm
