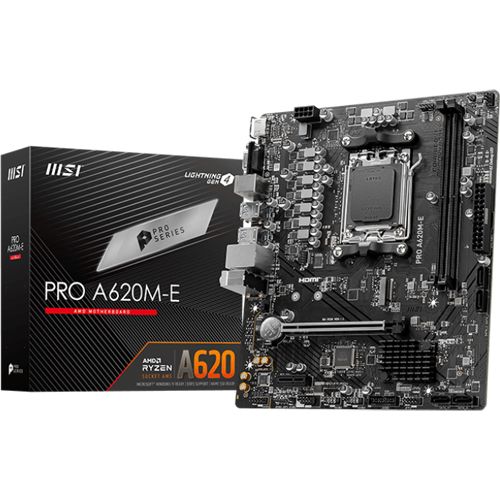

MSI A620M-E Pro DDR5 Motherboard
Model | : MSI A620M-E Pro |
Form Factor | : mATX |
Chipset | : AMD A620 |
CPU Socket | : AM5 |
Support | : AMD Ryzen™ 9000/ 8000/ 7000 Series Processor |
Ram Type | : DDR5 |
3 Years Warranty
Categories:
Chipset
AMD A620
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory
2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)
5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
-Supports Dual-Channel mode
-Supports non-ECC, un-buffered memory
-Supports AMD EXPO
Onboard Graphics
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN
Realtek® RTL8111H Gigabit LAN
Internal IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE
4x EZ Debug LED
BACK PANEL PORTS
HDMI™
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX
211mmx243.84mm
