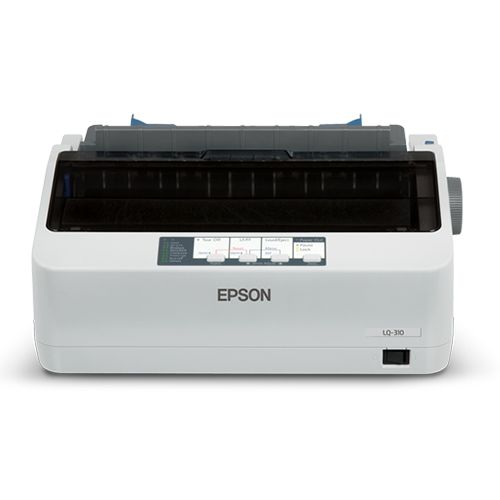

Epson LQ 310 Dot Matrix Printer
| Brand | EPSON |
| Model | LQ-310 |
| Connectivity Technology | USB, Serial and Parallel ports |
| Print Method | Impact dot matrix |
| Printer Output | Monochrome |
| Number of Pins in Head | 24 Pin |
2 Year Warranty
Categories:
Printing Technology:
| Print Method: | Impact dot matrix |
| Control Panel: | 4 switches and 5 LEDs |
| Print Direction: | Bi-direction with logic seeking |
| Number of Pins in Head: | 24 pins |
| Control Code: | ESC/P2 and IBM PPDS emulation |
Print Speed:
| High Speed Draft: | 10cpi: 347 cps / 12cpi: 416 cps |
| Draft: | 10cpi: 260 cps / 12cpi: 312 cps / 15cpi: 390 cps (Condensed) 17cpi: 222 cps / (Condensed) 20cpi: 260 cps |
| Letter Quality: | 10cpi: 86 cps / 12cpi: 103 cps / 15cpi: 129 cps (Condensed) 17cpi: 147 cps / (Condensed) 20cpi: 172 cps |
Reliability:
| MTBF: | Approx. 10,000 POH (25% Duty) |
| Printhead Life: | Approx. 400 million strokes/wire |
| Mean Print Volume Between Failure (MVBF): | Approx. 20 million lines (Except print head) |
Print Characteristics:
Character Sets: Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15Bitmap Fonts: Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: ProportionalScalable Fonts: Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, PostnetPaper Path:
Manual Insertion:Rear in, Top outPush Tractor:Rear in, Top out
Paper Media:
Cut Sheet (Single Sheet):Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055")
Cut Sheet (Multi-part Forms): Length: 100 ~ 364 mm (3.9 ~ 14.3")
Width: 100 ~ 257 mm (3.9 ~ 10.1")
Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126") (Total)
Envelope (No.6): Length: 92 mm (3.6"), Width: 165 mm (6.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
Envelope (No.10): Length: 105 mm (4.1"), Width: 241 mm (9.5"), Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205") (Total)
Continuous Paper (Single Sheet): Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)
Continuous Paper (Multi-part Forms): Length: 101.6 ~ 558.8 mm (4.0 ~ 22.0")
Width: 101.6 ~ 254.0 mm (4.0 ~ 10.0")
Thickness: 0.065 ~ 0.32 mm (0.0025 ~ 0.0126") (Total)
Roll Paper: Width: 216 mm (8.5"), Thickness: 0.07 ~ 0.09 mm (0.0028 ~ 0.0035")
Consumables:
Ribbon Cartridge Black:Approx. 2.5 million characters (LQ 10cpi, 48 dots/character) - C13S015639
Interface:
Standard:Bi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial
