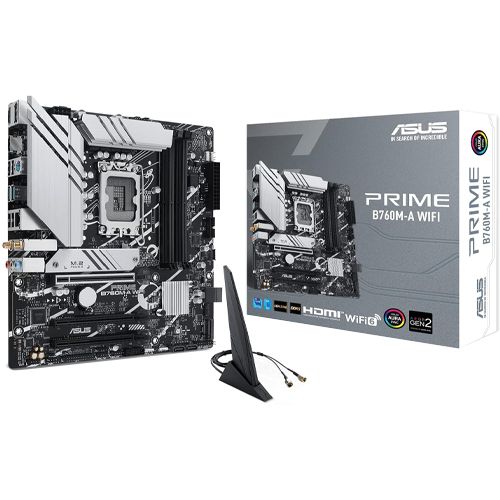

Asus Prime B760M A WIFI DDR5 LGA 1700 Motherboard

Model
PRIME B760M-A WIFI

News & Updates
2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
-Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Chipset
Intel B760 Chipset

Memory
4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory
-Dual Channel Memory Architecture
-Supports Intel® Extreme Memory Profile (XMP)
-OptiMem II
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

Graphics
1 x DisplayPort
2 x HDMITM ports
Graphics specifications may vary between CPU types
Supports max. 4K@60Hz as specified in DisplayPort 1.4
Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots
Intel® CoreTM Processors (14th & 13th & 12th Gen)
-1 x PCIe 4.0 x16 slot
Intel® B760 Chipset
-1 x PCIe 4.0 x16 slot (supports x4 mode)
-1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB
Rear USB (Total 6 ports)
-2 x USB 3.2 Gen 2 ports (2 x Type-A )
-4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
-2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
-1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
-2 x USB 2.0 headers support 4 additional USB 2.0 ports
-1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
-1 x 4-pin CPU Fan header
-1 x 4-pin CPU OPT Fan header
-2 x 4-pin Chassis Fan headers
Power related
-1 x 24-pin Main Power connector
-1 x 8-pin +12V Power connector
Storage related
-2 x M.2 slots (Key M)
-4 x SATA 6Gb/s ports
USB
-2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
-1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
-2 x USB 2.0 headers support 4 additional USB 2.0 ports
-1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
-3 x Addressable Gen 2 headers
-1 x Aura RGB header
-1 x Clear CMOS header
-1 x COM Port header
-1 x Front Panel Audio header (AAFP)
-1 x LPT header
-1 x S/PDIF Out header
-1 x SPI TPM header (14-1pin)
-1 x 20-3 pin System Panel header with Chassis intrude function

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- Digi+ VRM
- PC Cleaner

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables : 2 x SATA 6Gb/s cables
Miscellaneous :
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation : 1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
